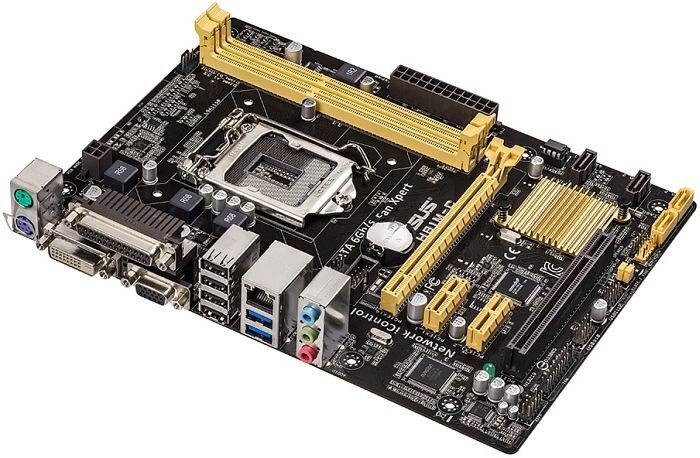

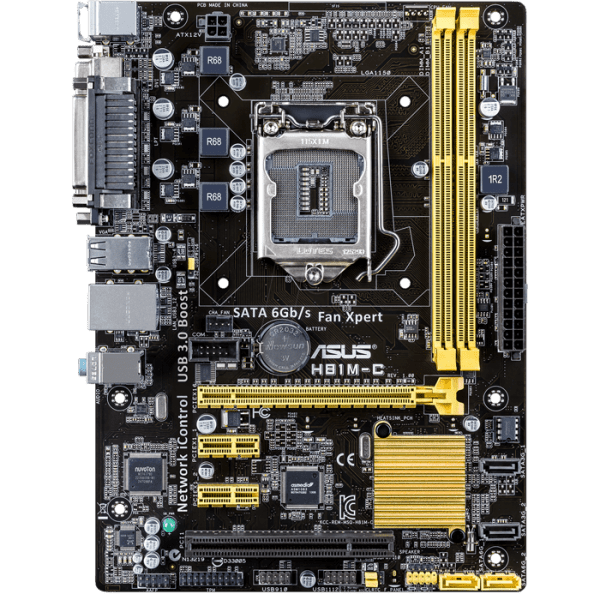

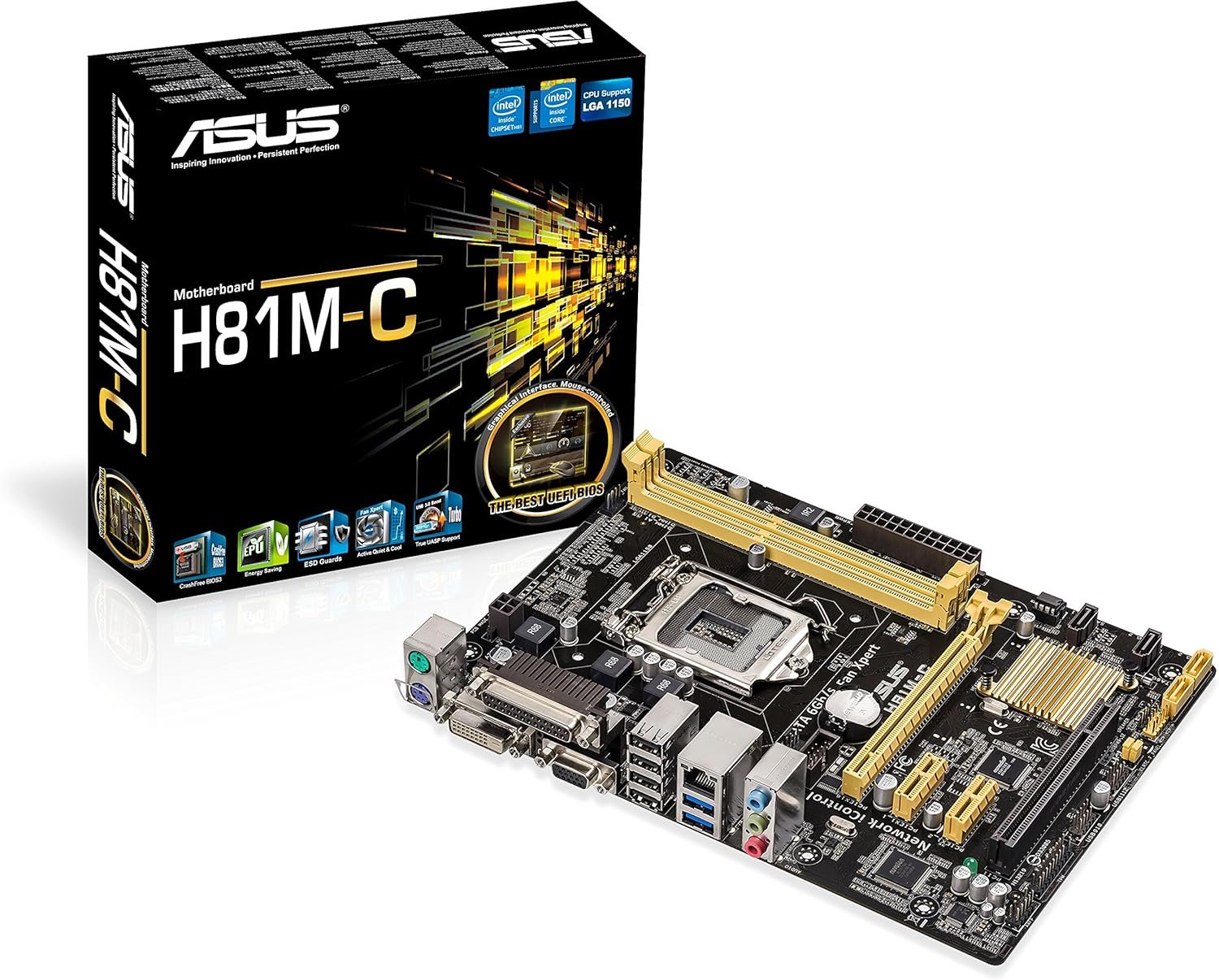

Asus H81m-c Motherboard

Specifications

Processor & Chipset

• Socket: LGA 1150
• Chipset: Intel H81 Express
• CPU Support:
  • Intel Core i7 (4th Gen)
  • Intel Core i5 (4th Gen)
  • Intel Core i3 (4th Gen)
  • Intel Pentium
  • Intel Celeron
• Supports Intel Turbo Boost Technology 2.0

Memory

• Memory Type: DDR3 DIMM
• Memory Slots: 2 x DDR3
• Maximum Capacity: 16GB
• Memory Speeds:
  • DDR3 1600MHz
  • DDR3 1333MHz
  • DDR3 1066MHz
• Dual Channel Memory Architecture
• Intel XMP Support

Expansion Slots

• 1 x PCI Express 2.0 x16
• 2 x PCI Express 2.0 x1
• 1 x PCI Slot

Graphics

• Integrated Graphics Support (CPU Dependent)
• Video Outputs:
  • 1 x DVI-D
  • 1 x VGA (D-Sub)
• Maximum Resolution: 1920 × 1200 @ 60Hz

Storage

• 2 x SATA 6Gb/s Ports
• 2 x SATA 3Gb/s Ports
• Supports Intel Rapid Start Technology
• Supports Intel Smart Connect Technology

Networking

• LAN Controller: Realtek RTL8111G
• Gigabit Ethernet (10/100/1000 Mbps)

Audio

• Audio Codec: Realtek ALC887-VD
• 7.1 Channel High Definition Audio

USB Connectivity

• Rear USB:
  • 2 x USB 3.0
  • 4 x USB 2.0
• Internal:
  • Additional 4 x USB 2.0 via headers

Rear I/O Ports

• 1 x PS/2 Keyboard Port
• 1 x PS/2 Mouse Port
• 1 x DVI-D
• 1 x VGA (D-Sub)
• 1 x RJ-45 LAN Port
• 2 x USB 3.0
• 4 x USB 2.0
• 1 x Parallel Port
• Audio Jacks

Internal Connectors

• 24-pin ATX Power Connector
• 4-pin CPU Power Connector
• Front Panel Audio Header
• TPM Header
• COM Port Header
• CPU Fan Header
• Chassis Fan Header
• Clear CMOS Jumper

Form Factor

• Micro-ATX (mATX)
• Dimensions: 24.4 cm x 17.8 cm

Operating System Support

• Windows 7
• Windows 8 / 8.1
• Windows 10
